Crossbeam Adapter

From 250.00

Not all car frames are built equal, and staggered lifting points can often be challenging to access! Turning the QuickJack sideways is a great way to combat these issues, but it can also leave your undercarriage partially obstructed. With a Crossbeam Adapter Set, your QuickJack can find all of your difficult lifting points with ease while leaving your undercarriage unobstructed and ready for any tricky maintenance!

QuickJack system sold separately.

Wissen
Artikelnummer: Niet beschikbaar Categorie:
Some cars may have staggered or uneven lifting points, and many trucks might have kicked frame rails, this can sometimes make lifting your vehicle with a QuickJack challenging. The Crossbeam Adapter Set can give your QuickJack some of the capabilities of a two-post lift by allowing you to position contact pads directly under even the most staggered lifting points around. Though you can easily and safely lift your car with your QuickJack placed sideways, it may obstruct your undercarriage, which can make some maintenance difficult or impossible to perform. The Crossbeam Adapter Set can reach all of your recommended lifting points while leaving your undercarriage completely free!

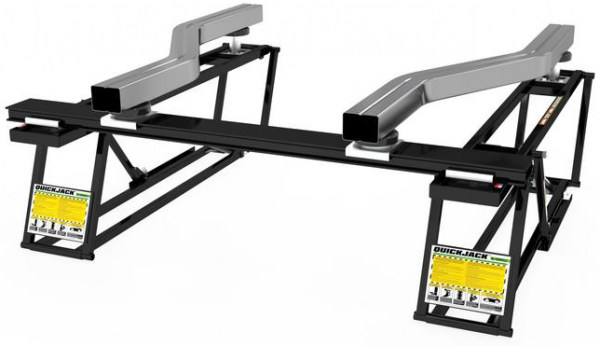

Crossbeam adapter
  • Reaches difficult lifting points front to rear
  • Adjustable lifting pads
  • Additional 4.75” clearance height
  • Comes with custom contact pads
  • Unobstructed undercarriage

Crossbeam length: 65” (1,651 mm)
Min. adapter height w/ BL-5000 Series: 6” (152 mm)
Min. adapter height w/ BL-7000 Series: 7” (178 mm)
Crossbeam w/ adapter height (BL-5000 Series): 4.75” (121 mm)
Crossbeam w/ adapter height (BL-7000 Series): 5” (127 mm)
Crossbeam to pad: 1.5” (38 mm)
Base pad dimensions: 4.75” x 4.75” (121 x 121 mm)
Round pad diameter: 5” (127 mm)

1x Crossbeam weldment
2x Sliding base pad assemblies
2x Sliding lift pad assemblies
2x Base height adapter assemblies
2x Round lift pad adapter assemblies

Extra informatie

Model

5000SLX/EXT, 7000SLX/EXT

~

Installation / Operation / Maintenance Manual PDF

QuickJack Garage Lift Parts Diagram

Vehicle Measurement Worksheet

QuickJack Cylinder Designator

Important Tech Bulletin - Never Raise QuickJack With No Vehicle Load

QuickJack Portable Car Lift Manual (All Models) (pdf) UPDATED - DEC 2017
