Autostacker PL-6SR

6,250.00 Excl. Btw

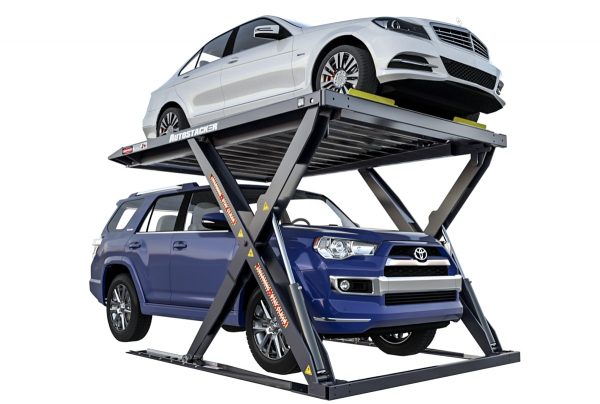

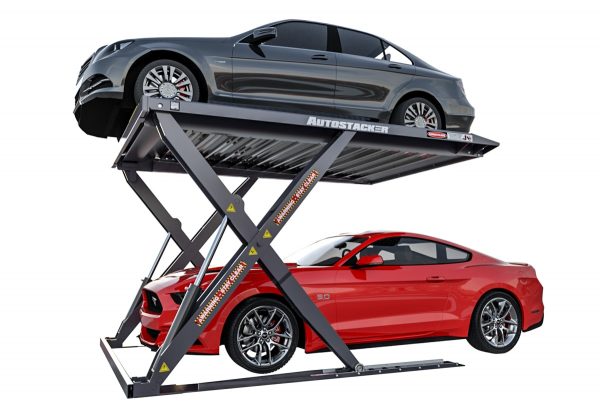

Meet the Autostacker
With the strength to support up to 6,000 pounds, Autostacker is the perfect parking lift system that doubles as a home car lift and professional stacker.

Uitverkocht

Categorie:
Autostacker PL-6SR

Meet the Autostacker

With the strength to support up to 6,000 pounds, Autostacker is the perfect parking lift system that doubles as a home car lift and professional stacker.
6,000-lb. Lifting Capacity
When you make Autostacker your home parking lift, you get enough storage capacity to lift most cars.

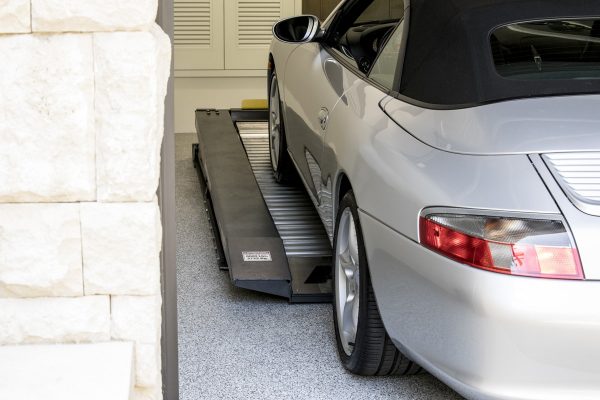

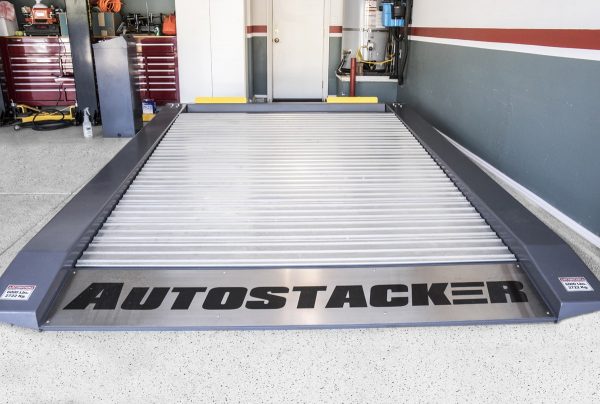

Low-Profile Entry Ramp
Our super-low-profile deck is gently inclined to permit safe, easy clearance for low-stance vehicles.

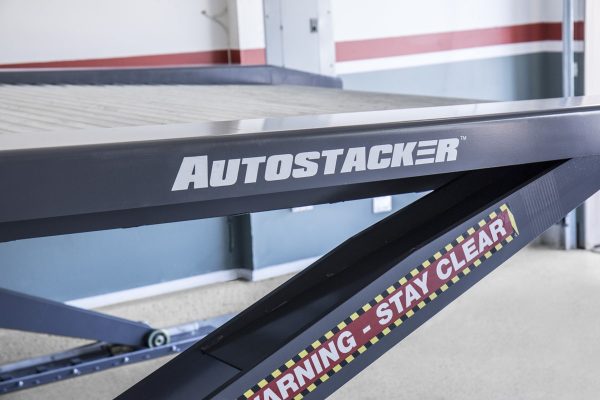

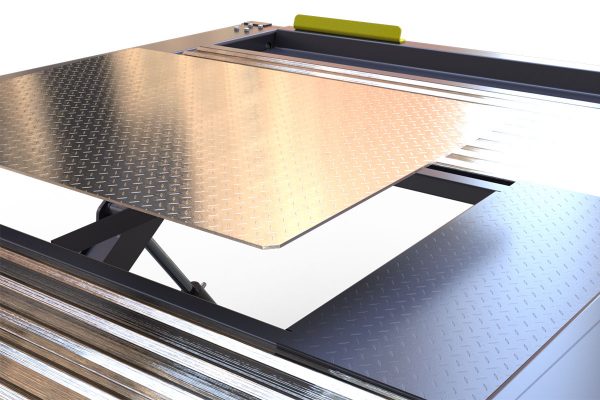

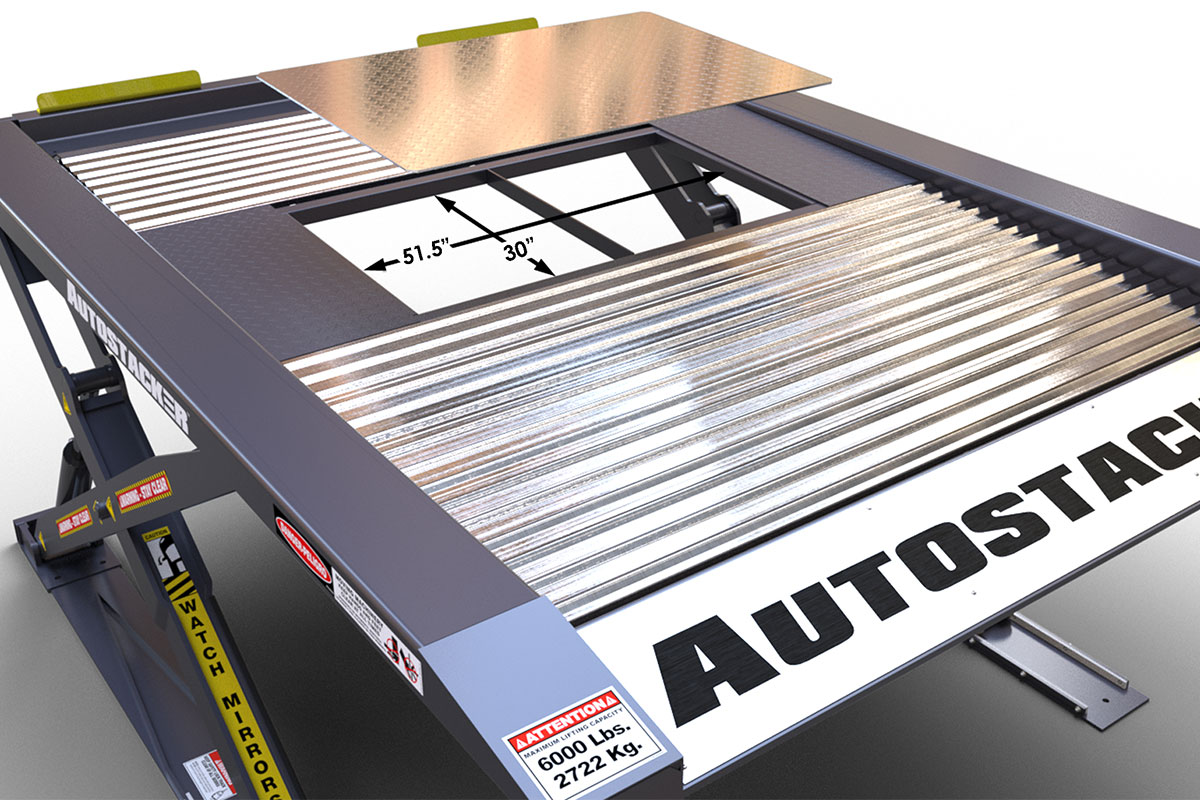

Interlocking Galvanized Platform
A hot-dipped, zinc-coated platform lasts many years and protects the bottom vehicle from fluid drips.

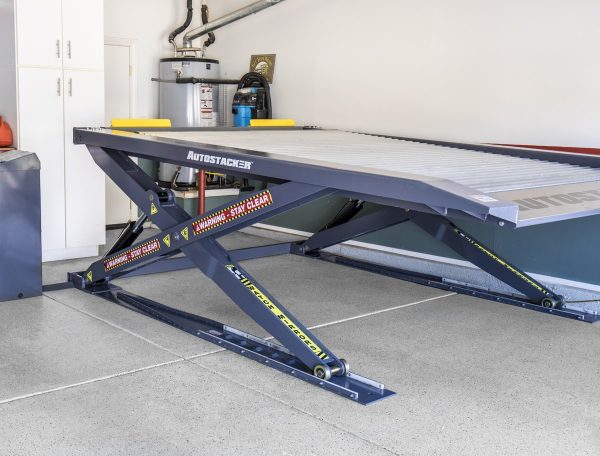

Automatic Safety Locks
All locks engage continuously as the parking lift rises past five heights for versatile positioning.

What’s Included

  • Right side scissors superstructure
  • Left side scissors superstructure
  • Front wheel trough
  • Ramp assembly with logo plate
  • Lower front tie-bar
  • Galvanized decking sections

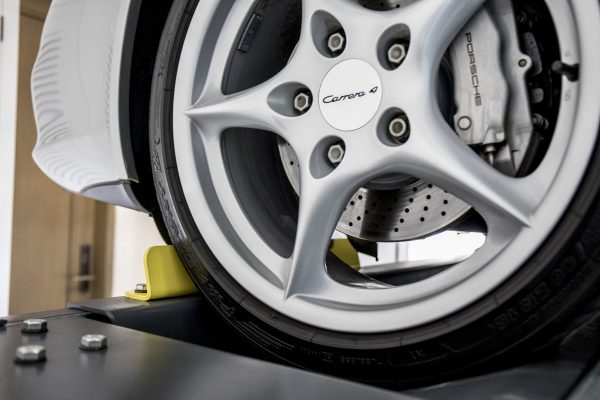

  • Front tire stops

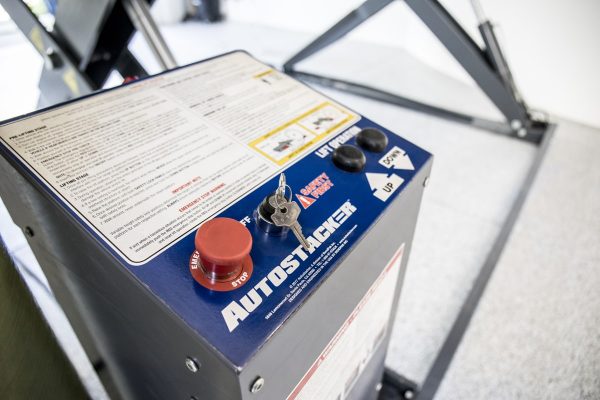

  • Power unit control console
  • Complete assembly parts package including all fasteners, hoses, fittings & anchor bolts
  • Installation and operators manual

Extra informatie

Specificaties

Specifications
Lifting Capacity
6,000 lbs. (2,722 kg)
Dimensions
Overall width: 103.2” (2,620 mm)
Overall length: 144” (3,658 mm)
Platform length: 124" (3,150 mm)
Platform width: 83.8” (2,128 mm)
Platform height (forward): 13” (330 mm)
Ramp height (entry): 2” (51 mm)
Lifting height on top lock: 88.7” (2,255 mm)
Under clearance on top lock: 85.6” (2,150 mm)
Power
Standard – Power Unit Console
Single unit operation
Motor horsepower: 2HP
Power consumption: 1,500 Watts
Motor voltage: 208-240V, 50/60Hz / 1Ph
Starting amps: 25A
Normal running amps: 12-18A
Optional – Multi-Unit Power Unit Console
Operates up to 14 lifts
Motor horsepower: 7.5 HP
Power consumption: 5,600 Watts
Motor voltage: 208-230V/460 VAC, 50/60Hz / 3Ph
Starting amps 208-230V: 25A
Normal running amps 208-230V: 12-18A
Starting amps 460V: 10A
Normal running amps 460V: 6-9A
Decibels
52 db
Special voltages available upon request.

Shipping Weight
3,350 lbs. (1,530 kg.)

Six Locking Heights
First (Lowest Locking Position): 52.5" (1,334 mm)
Second: 59.75" (1,518 mm)
Third: 66" (1,676 mm)
Fourth: 71.5" (1,816 mm)
Fifth: 76.5" (1,943 mm)
Sixth (Highest Locking Position): 80.25" (2,038 mm)

~

Installation / Operation / Maintenance Manual PDF

QuickJack Garage Lift Parts Diagram

Vehicle Measurement Worksheet

QuickJack Cylinder Designator

Important Tech Bulletin - Never Raise QuickJack With No Vehicle Load

QuickJack Portable Car Lift Manual (All Models) (pdf) UPDATED - DEC 2017
