Quickjack BL-5000EXT Portable Car Lift

1,445.00 Excl. Vat/Btw

Spedizione gratuita in qualsiasi paese d’Europa
VAT will be exempt if a valid VAT EU number is provided



The BL-5000EXT is our latest extended model for lifting cars and light trucks, with jack support locations farther apart than normal. Basically, it’s longer. QuickJack EXT models are available in both 5,000 and 7,000-lb. capacities.



BL-5000EXT Portable Car Lift
• Capacity: 2.268KG
• Liftpointspread: Min. 951mm Max. 1.676mm
• collapsed: 75 mm
• Max height: 542 mm
Hydraulic Oil not included.

208-240V AC Power-unit 50-60Hz
• Watt: 550
• Amps: 5-8

12-Volt DC Power-unit
• Watt: 800
• Amps: 66

Esaurito

Features

EXTENDED-LENGTH Car Lift Design

The BL-5000EXT portable car lift has been redesigned to accommodate vehicles with longer wheelbases. We’ve increased the overall frame length and lift point spread by 6”. As a result, the minimum lift point spread is now 6” longer, as well. Our new portable car lift design better accommodates longer wheelbases and/or extended lift point spreads.
  • SLX minimum lift point spread: 29.5”
  • EXT minimum lift point spread: 37.4”
  • SLX maximum lift point spread: 60”
  • EXT maximum lift point spread: 66”
  • SLX overall frame length: 71”
  • EXT overall frame length: 75” (5000 model only)

Long list of design features…

  • 5,000-pound capacity
  • Extended lifting point spread
  • From stow to go in less than 60-seconds
  • Dual-position automatic safety lock bars engage automatically as the lift rises
  • Dual locking positions – mid level and full rise

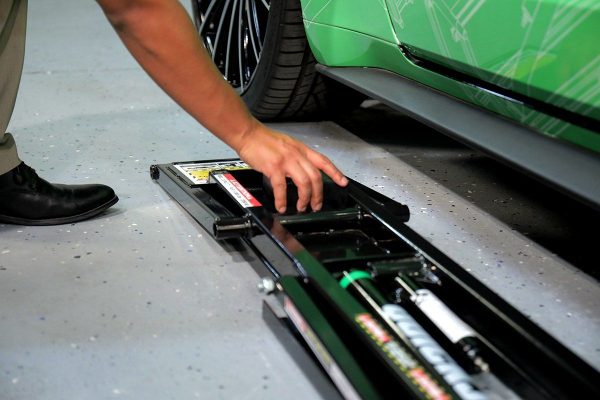

  • Extended, cantilevered rubber block trays provide increased rubber block reach

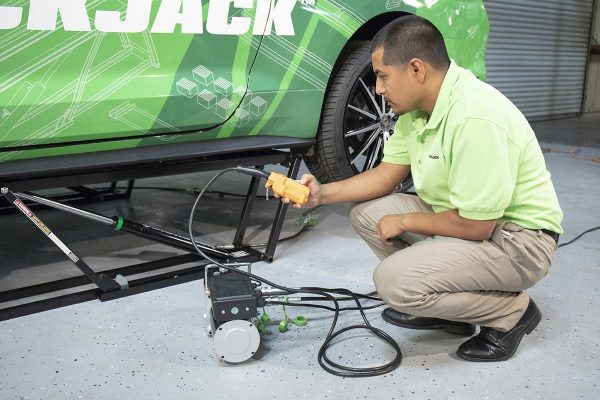

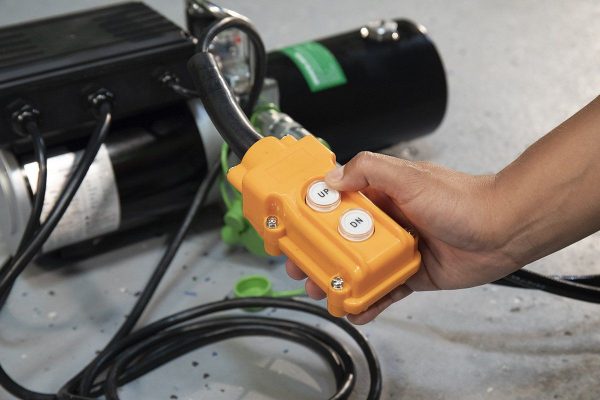

  • Portable power unit features a remote push-button control for simple operation

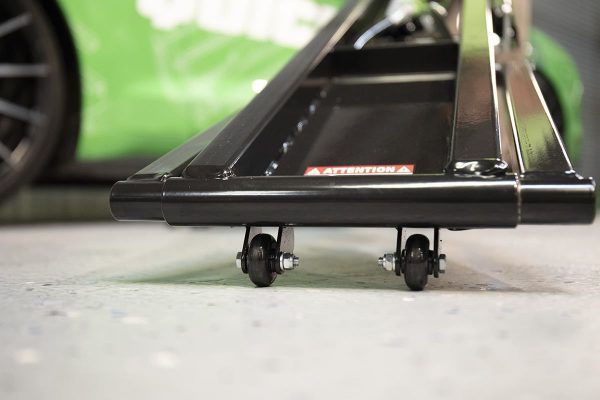

  • Steel mounted urethane wheels provide effortless rolling of jack frames on floor
  • Remote pendant control features a 13-foot cord
  • Power unit features a built-in hydraulic flow divider for precise equalized lifting
  • Open-center design for clear under car access
  • Quick-connect/disconnect hoses for fast and convenient set-up

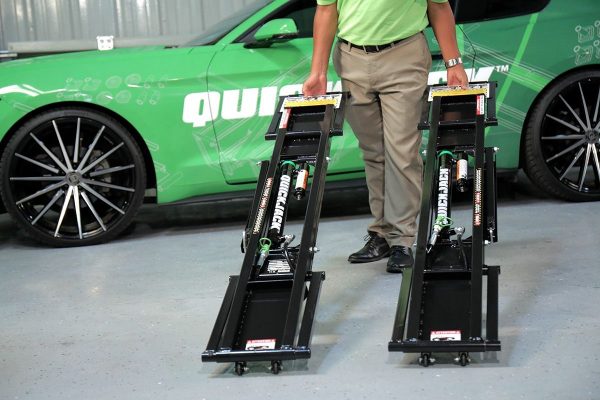

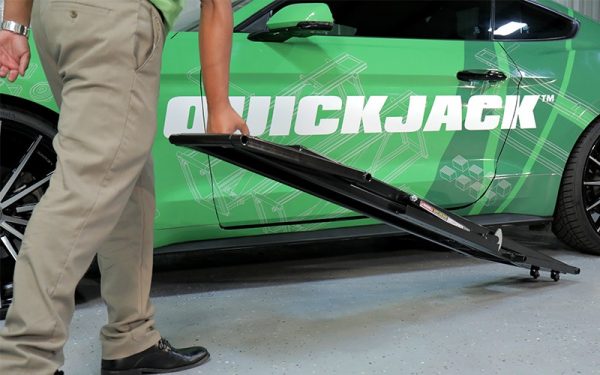

  • Convenient handles allow for easy positioning of the jack frames
  • Strong 14-gauge welded steel frames
  • It’s a jack you can use when you need it then conveniently store out of the way
  • Provides quick wheels-free convenience for brake and tire service and clear undercarriage access of all types of vehicles

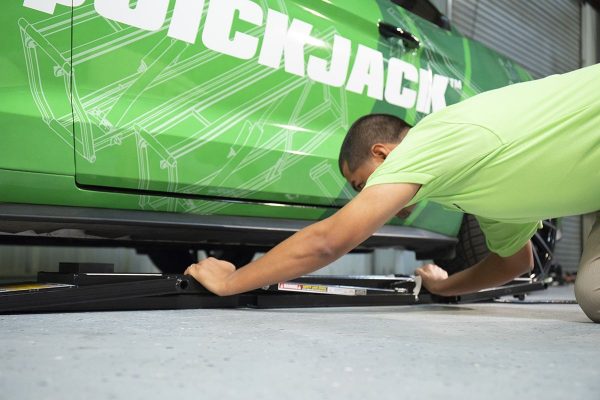

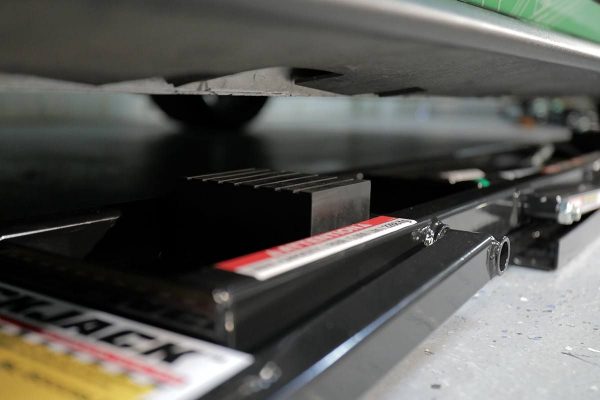

  • Low-profile jack frames fit under most race cars
  • Powerful hydraulic cylinders eliminate the need for screw mechanisms
  • Integrated power-assist canisters increase the lowering speed
  • Hydraulic cylinders feature integrated velocity-fuse safety valves
  • A convenient metal carrier with handle keeps the power unit protected and easily mobile

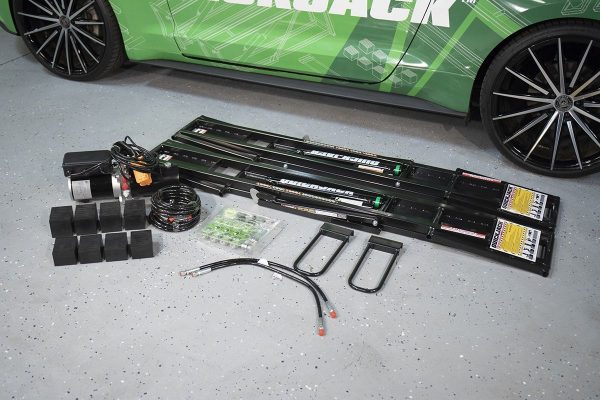

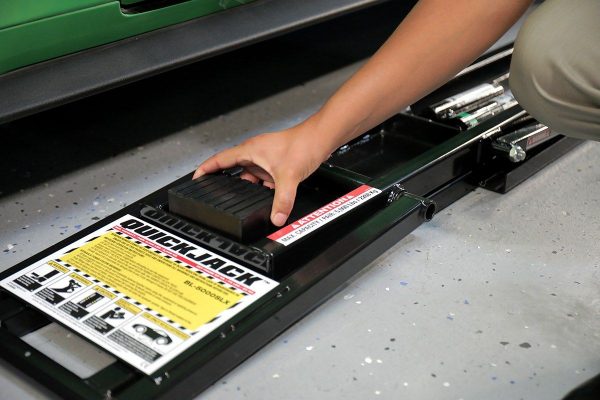

  • Includes an eight piece set of adjustable and stackable rubber lift blocks to support cars at precise locations for increased stability and safety
  • Detailed installation, maintenance and safety instructions accompany each QuickJack system
  • Durable powder coat finish
Specifications QuickJack Garage Lift Dimensions

MODEL

BL-5000EXT

LIFTING CAPACITY 5,000 lbs. / 2,268 kg.
(A) COLLAPSED 3″ / 76 mm
(B) COLLAPSED W/ SMALL BLOCK 3.8″ / 97 mm
(C) RAISED (FRAME ONLY) 17.6″ / 447 mm
(D) RAISED (SMALL BLOCK) 18.4″ / 467 mm
(E) RAISED (LARGE BLOCK) 19.2″ / 487 mm
(F) RAISED (STACKED BLOCKS) 21.3″ / 542 mm
(G) SUV ADAPTERS 20.3″ / 516 mm
(H) SUV ADAPTERS (W/ PIN) 23.3″ / 592 mm
(I) LIFTING POINT SPREAD – MAX 66″ / 1,676 mm
(J) LIFTING POINT SPREAD – MIN 37.4″ / 951 mm
(K) FRAME WIDTH 11″ / 278 mm
(L) FRAME LENGTH 75″ / 1,905 mm
FRAME WEIGHT 80 lbs. / 36 kg
POWER UNIT WEIGHT 35 lbs. / 16 kg
SHIPPING WEIGHT 220 lbs. / 100 kg
Noise < 45dBA

POWER UNIT ELECTRICAL SPECIFICATIONS

MOTOR

HERTZ

KW

PHASE

AMPS

12-Volt DC N/A 0.8 N/A 70
110-Volt AC 60 0.55 1 10-15
208-230-Volt AC 50/60 0.55 1 5-8
240 Volt AC 50 0.55 1 4-6
  IMPORTANT NOTE: EXTENSION CORDS ARE NOT RECOMMENDED. Using extensions cords can adversely affect operation and can cause overheating conditions and damage to power unit. If using an extension cord, use the shortest cord possible. Refer to extension cord size chart below.

Cord Length

AWG size/rating

25 feet 14 gauge
50 feet 14 gauge
75 feet 12 gauge

Informazioni aggiuntive

Specificaties

MODEL BL-5000EXT
LIFTING CAPACITY 5,000 lbs. / 2,268 kg.
(A) COLLAPSED 3" / 76 mm
(B) COLLAPSED W/ SMALL BLOCK 3.8" / 97 mm
(C) RAISED (FRAME ONLY) 17.6" / 447 mm
(D) RAISED (SMALL BLOCK) 18.4" / 467 mm
(E) RAISED (LARGE BLOCK) 19.2" / 487 mm
(F) RAISED (STACKED BLOCKS) 21.3" / 542 mm
(G) SUV ADAPTERS 20.3" / 516 mm
(H) SUV ADAPTERS (W/ PIN) 23.3" / 592 mm
(I) LIFTING POINT SPREAD – MAX 66" / 1,676 mm
(J) LIFTING POINT SPREAD – MIN 37.4" / 951 mm
(K) FRAME WIDTH 11" / 278 mm
(L) FRAME LENGTH 75" / 1,905 mm
FRAME WEIGHT 80 lbs. / 36 kg
POWER UNIT WEIGHT 35 lbs. / 16 kg
SHIPPING WEIGHT 220 lbs. / 100 kg
Noise < 45dBA

Power-unit Opties

12-Volt DC Power-Unit, 208-240 Volt AC Power-unit

~

Installation / Operation / Maintenance Manual PDF

QuickJack Garage Lift Parts Diagram

Vehicle Measurement Worksheet

QuickJack Cylinder Designator

Important Tech Bulletin - Never Raise QuickJack With No Vehicle Load

QuickJack Portable Car Lift Manual (All Models) (pdf) UPDATED - DEC 2017
